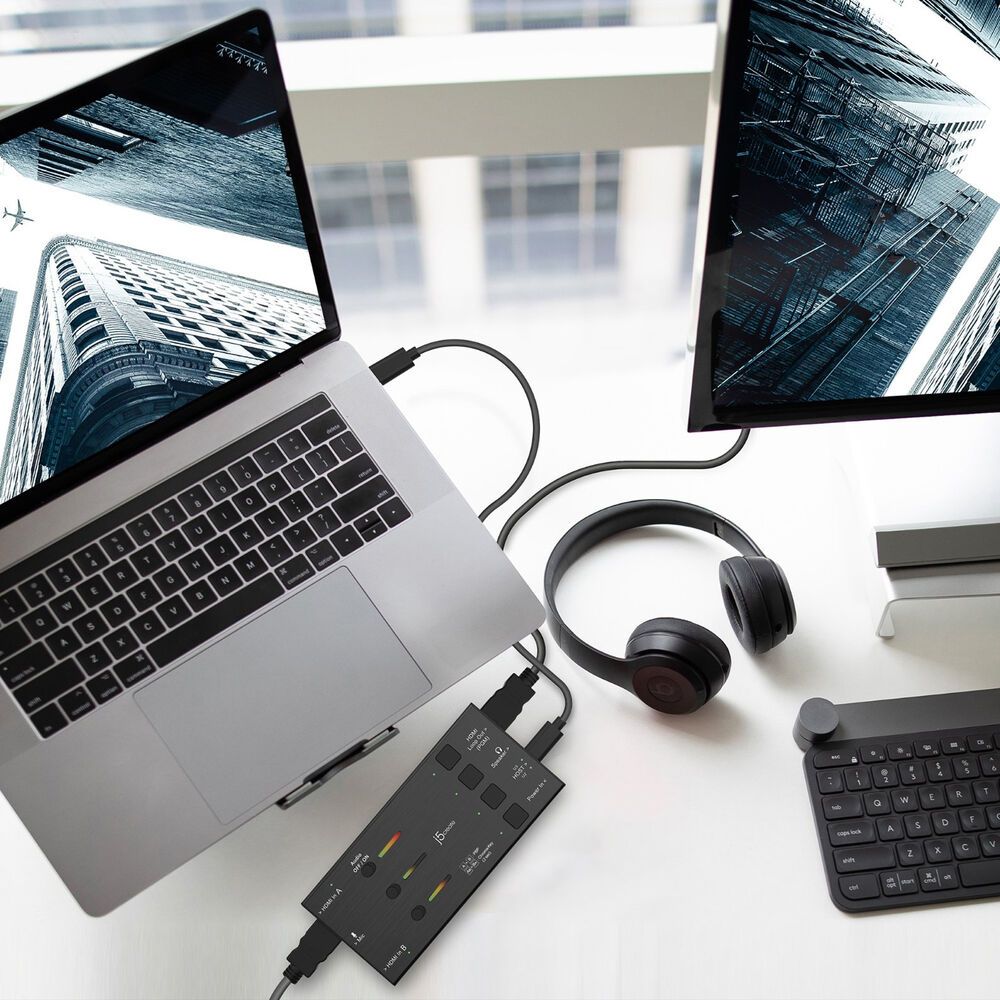

Mix and capture two live 4K video feeds using your computer, laptop, or mobile device with the Dual HDMI Video Capture from j5create.

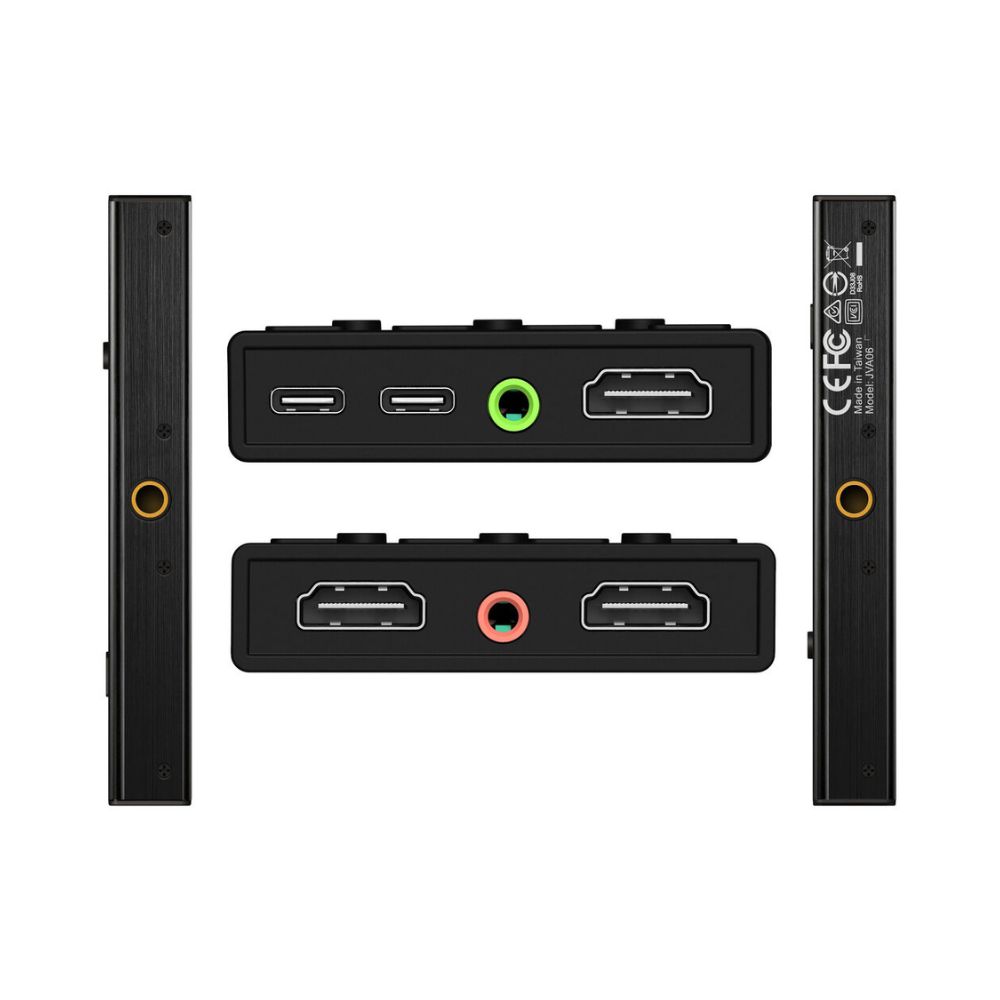

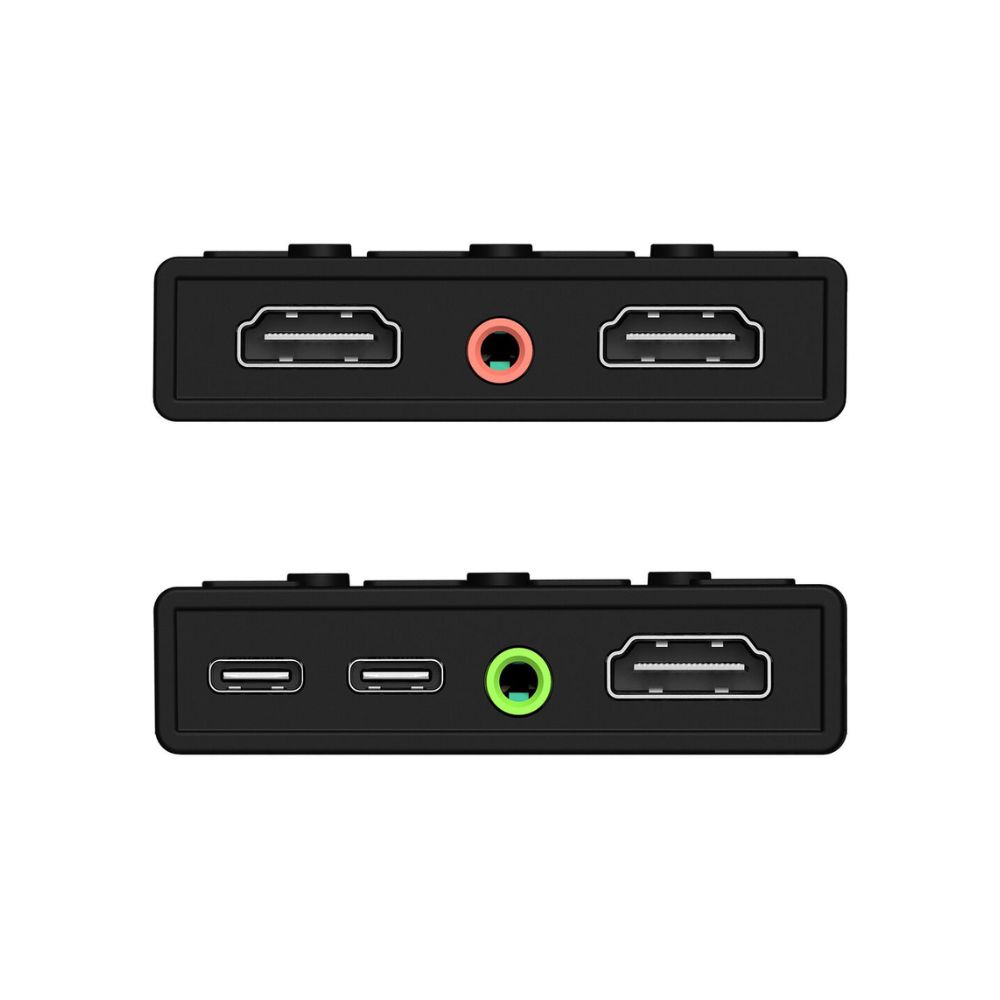

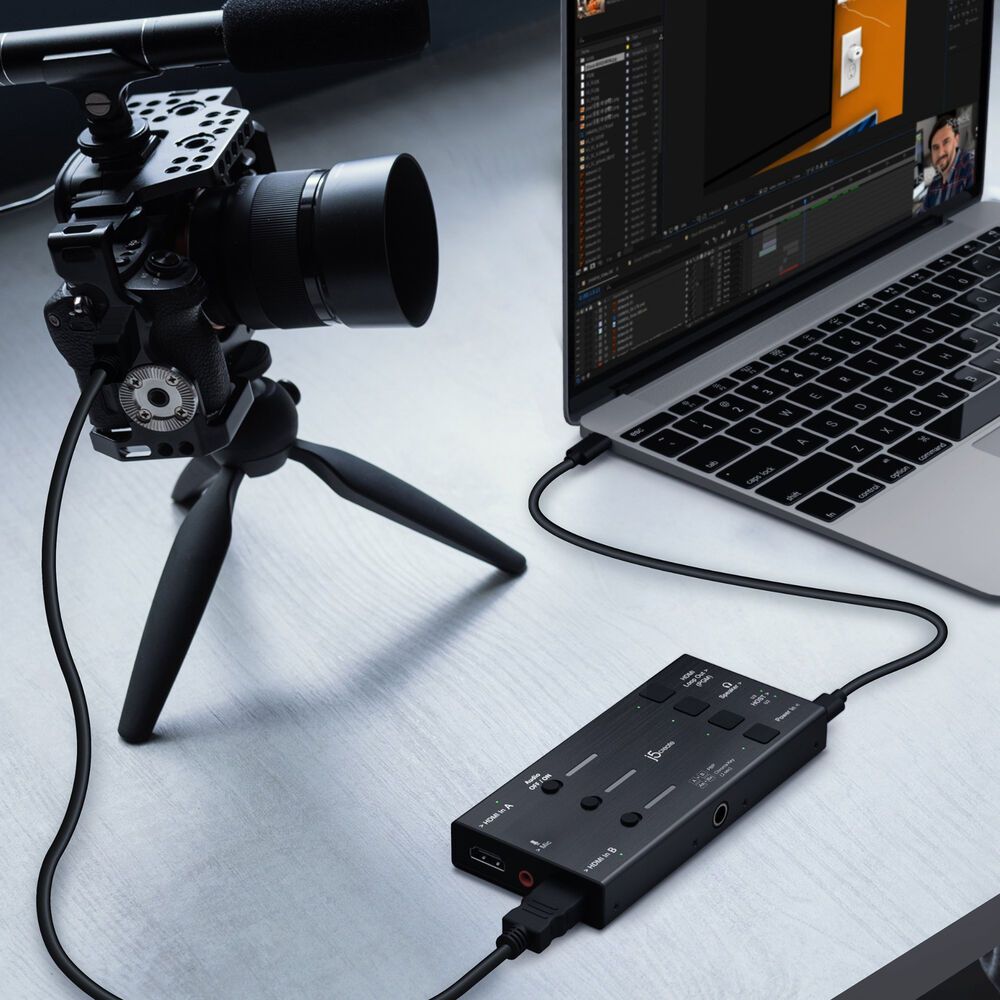

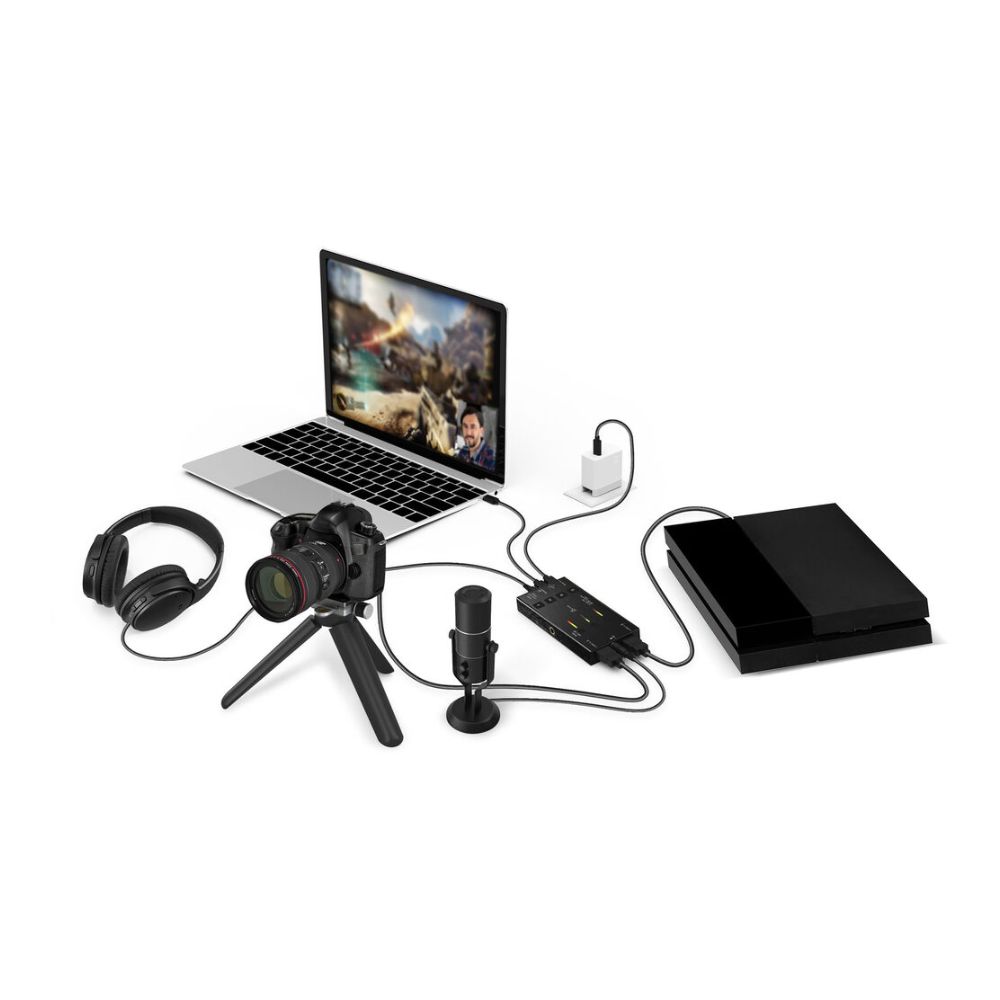

Designed to enhance one-person, two-camera setups for vlogging or internet streaming productions, the video capture device provides features dual HDMI inputs, 3.5mm audio inputs, and real-time HDMI Program preview. It features UVC plug-and-play standard, so it is easy to set up and get up and running quickly.
j5create JVA06 Dual HDMI Video Capture
The capture device outputs up to 1080p60 video to your computer via USB 3.1 Gen 1 Type-C, which also provides bus power to the device.

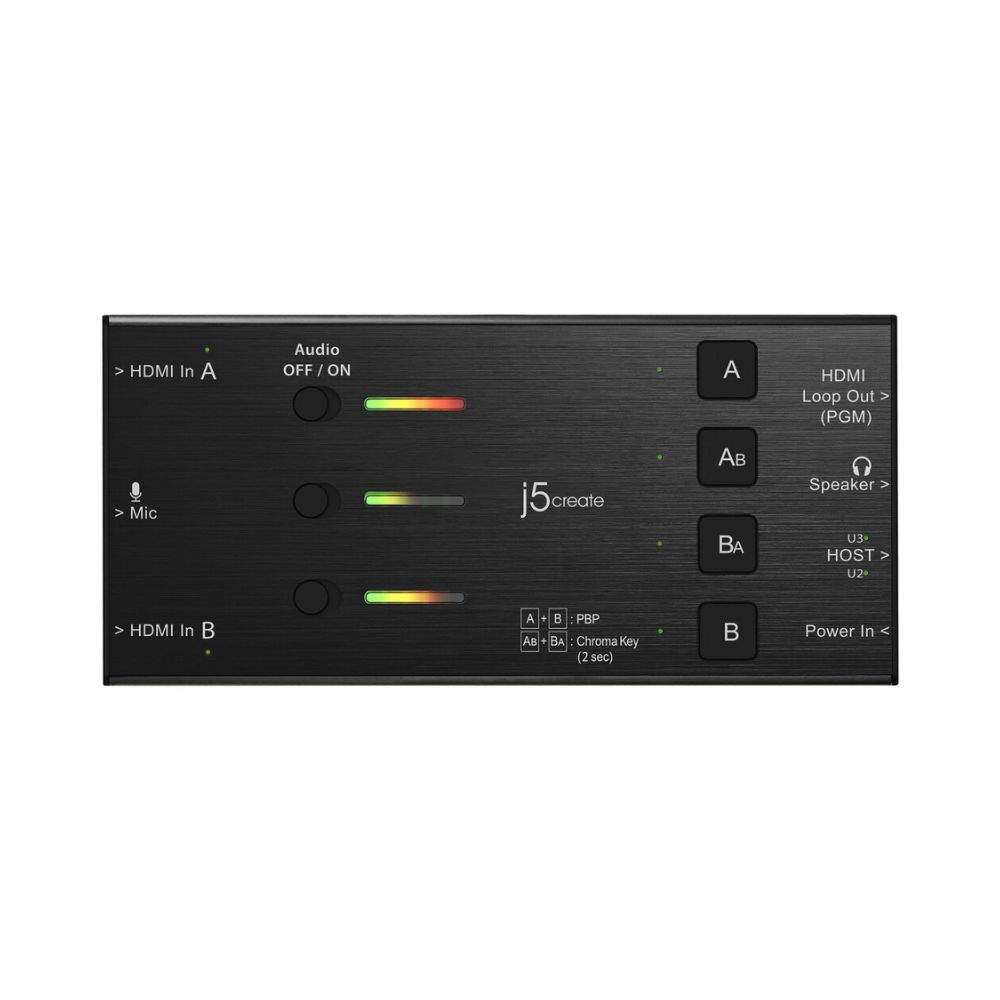

You can output up to six display mode configurations such as PiP (picture-in-picture) and PbP (picture-by-picture), and it has buttons to quickly switch between modes and transitions. It has a built-in chroma-key mode you can activate at the press of a button.

The audio input can be mixed and embedded into your video output, and it also features a headphone/speaker output.

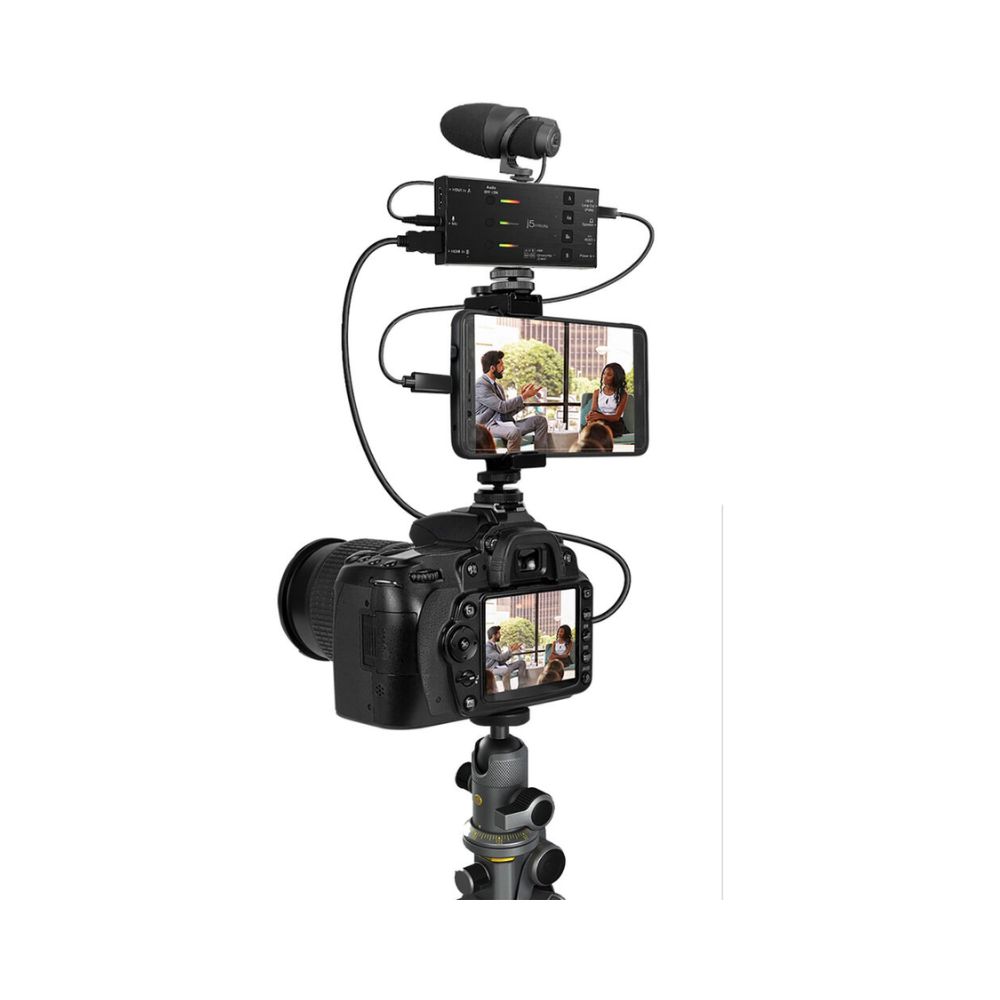

To mount the device, a camera mount with dual shoe mounts is included. The portable, lightweight capture device is compatible with Android, macOS, Linux, and Windows systems. It comes with a 39.4″ HDMI cable, a USB Type-C to Type-C cable, and a USB Type-C to Type-A cable.

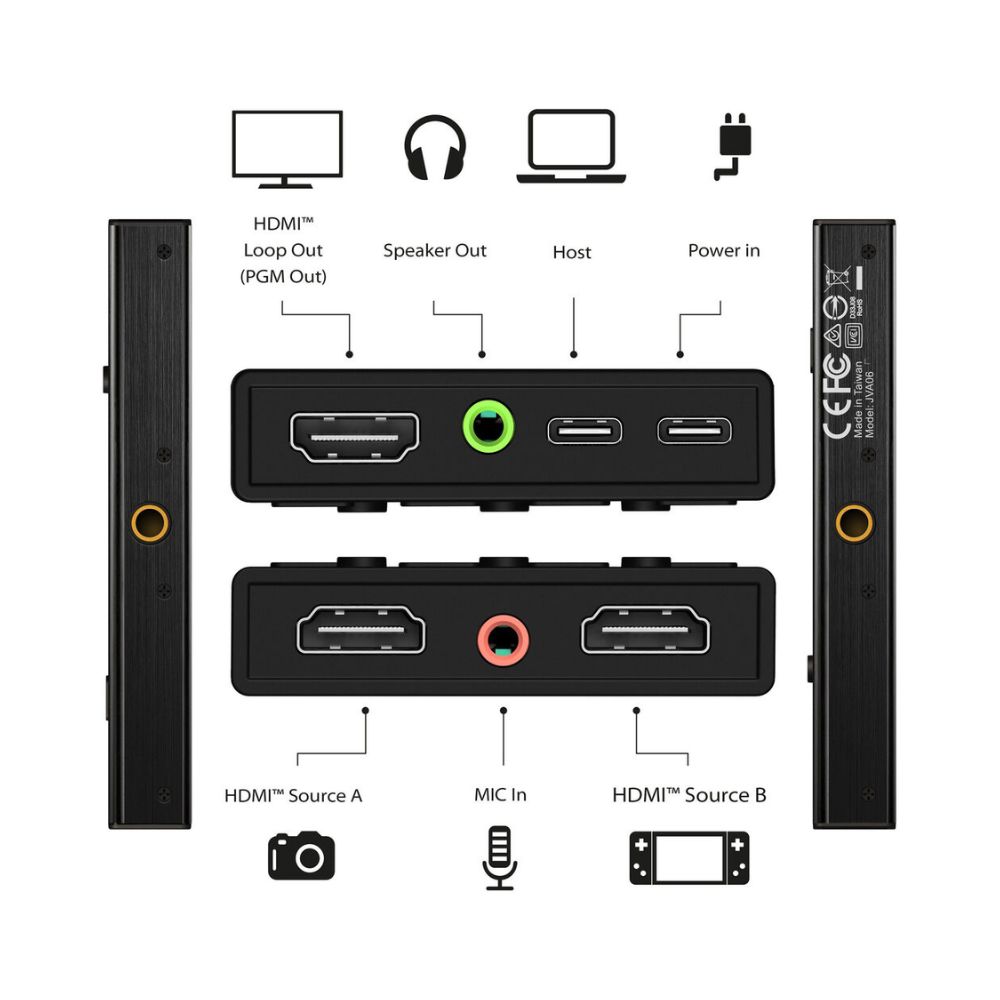

j5create JVA06 Dual HDMI Video Capture Key Features Dual HDMI inputs for capturing two video channels Full HD video and audio high-performance record/playback through USB 3.1 Gen1 Type-C The JVA06 is compatible across a wide range of streaming software, devices, and platforms including OBS, XSplit, CameraFi, QuickTime, and more Uncompressed 1080p60 capture via HDMI 1.3a Supports 1080p60 HDMI loop output (PGM out) Six screen mode configurations with PiP (picture-in-picture) and PbP (picture-by-picture) Easily switch between different screen modes and adjust transition effects with the built-in buttons Directly activate chroma-key features through the built-in controls Adjustable segmented window arrangements in PbP (picture-by-picture) mode Flexible audio connection via HDMI or add external audio with 3.5mm mic input and speaker output audio jack Three individual mixable audio channels and volume indicators simplify recording and streaming for any occasion Three channel volume indicators Easy DSLR attachment with two shoe adapters (included) Supports USB Type-C Power Delivery 3.0 UVC standard, plug-and-play LED activity indicator: HDMI IN, USB Link, Volume Unit Computer System Requirements j5create JVA06 Dual HDMI Video Capture Windows 7 and later (driver installation is required on Windows 7)
macOS X 10.10 and later
Linux
CPU: Intel Core i5 Gen 4 (3 GHz and above)
CPU: Intel Core i7 Gen 4 and above

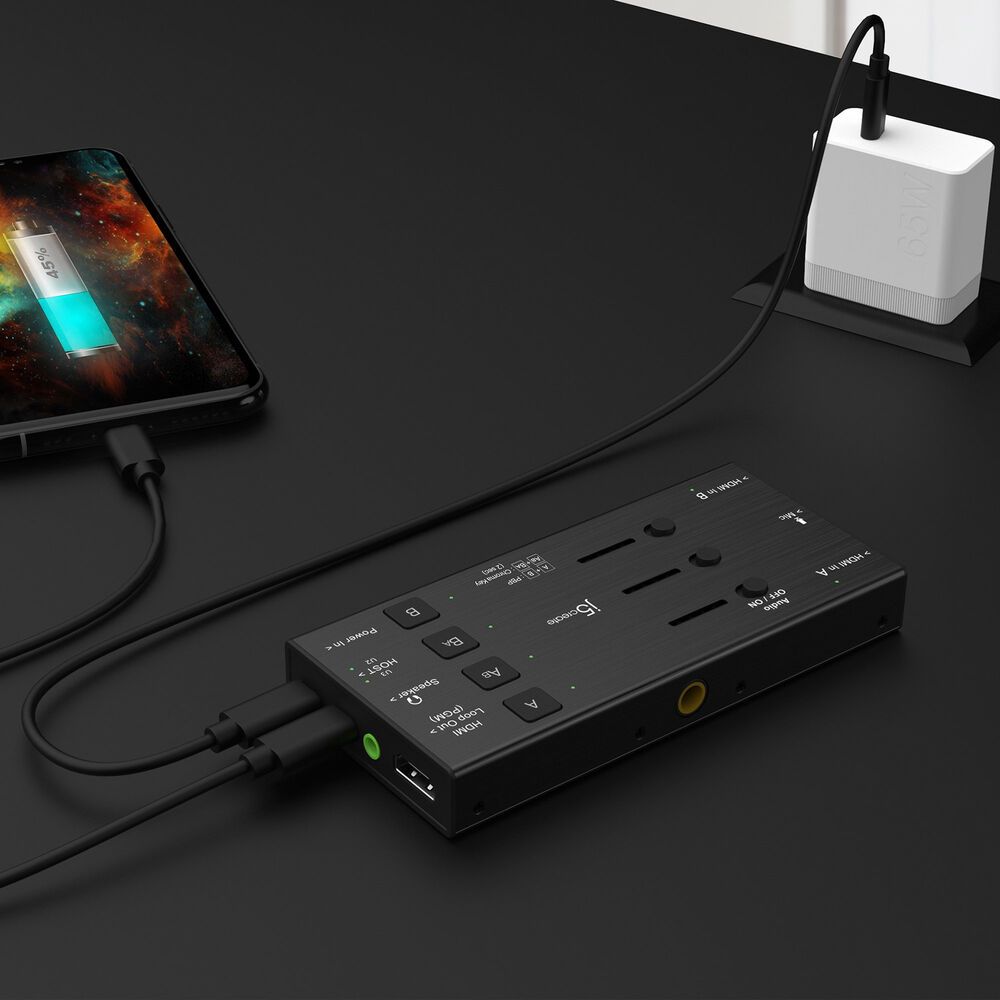

RAM: 4GB memory or higher (8GB is recommended) Smartphone Requirements Available USB Type-C port that supports USB Power Delivery 2.0 or 3.0
Android 7.0 and higher
CPU: Core 2 GHz and above
RAM: 4GB memory or higher j5create JVA06 Dual HDMI Video Capture AS289
