PODCASTER EQUIPMENT BUNDLE

AME2 MAONOCASTER

After shipping over200,000 units of Maonocaster Lite to over 50markets around the world,  MaonoCaster AME2 series podcast console,  an all-new product with a brand new design, substantial performance improvements, and new feature, Driving the high-end dynamic microphones, XLR condenser mic, and 3.5MM condenser mic for ultra-clear sound.

MAONOCASTER AME2 Audio Interface & Podcast Equipment

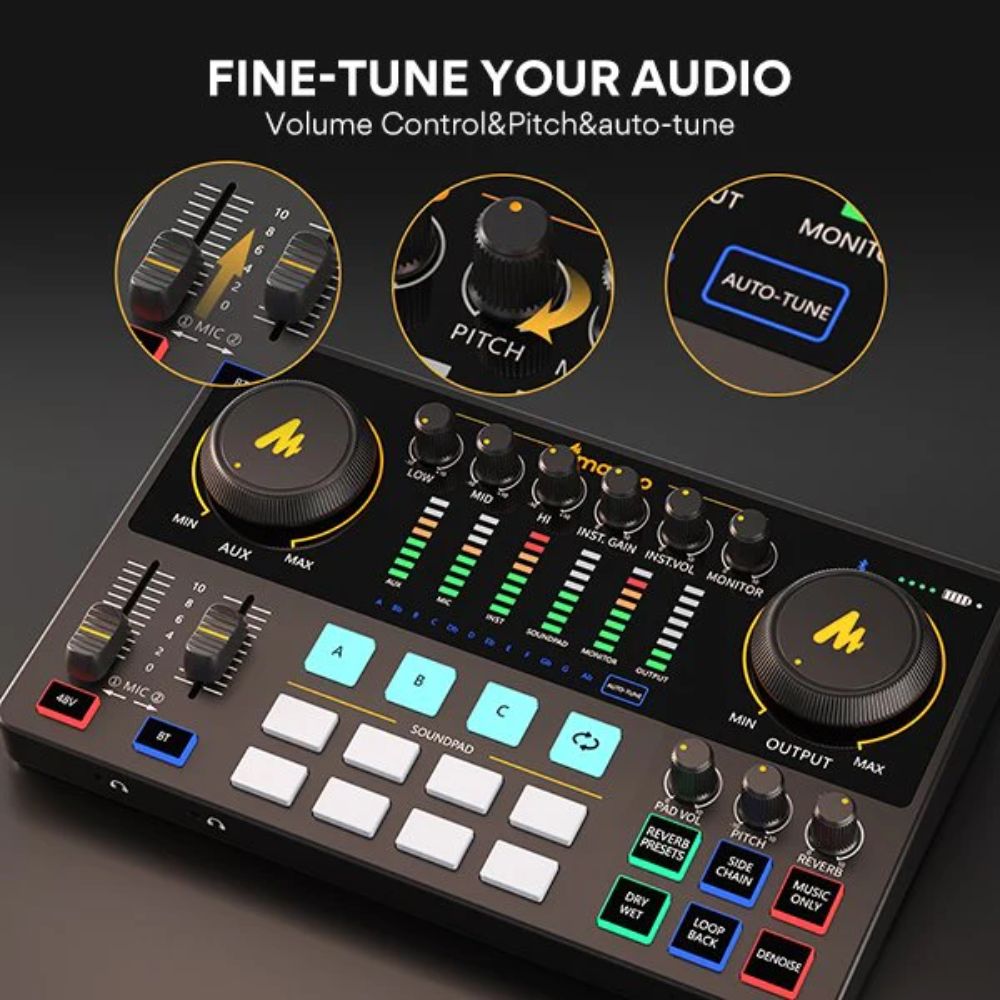

Mic Volume AdjustmentEach Mic, Soundpads, Monitor, Input, and Output Volume can be adjusted individually to enjoy your podcast.

MAONOCASTER AME2 Audio Interface & Podcast Equipment

Intelligent Noise ReductionReduces background noises, you will get clean, distortion-free audio with a natural, warm sound.

MAONOCASTER AME2 Audio Interface & Podcast Equipment

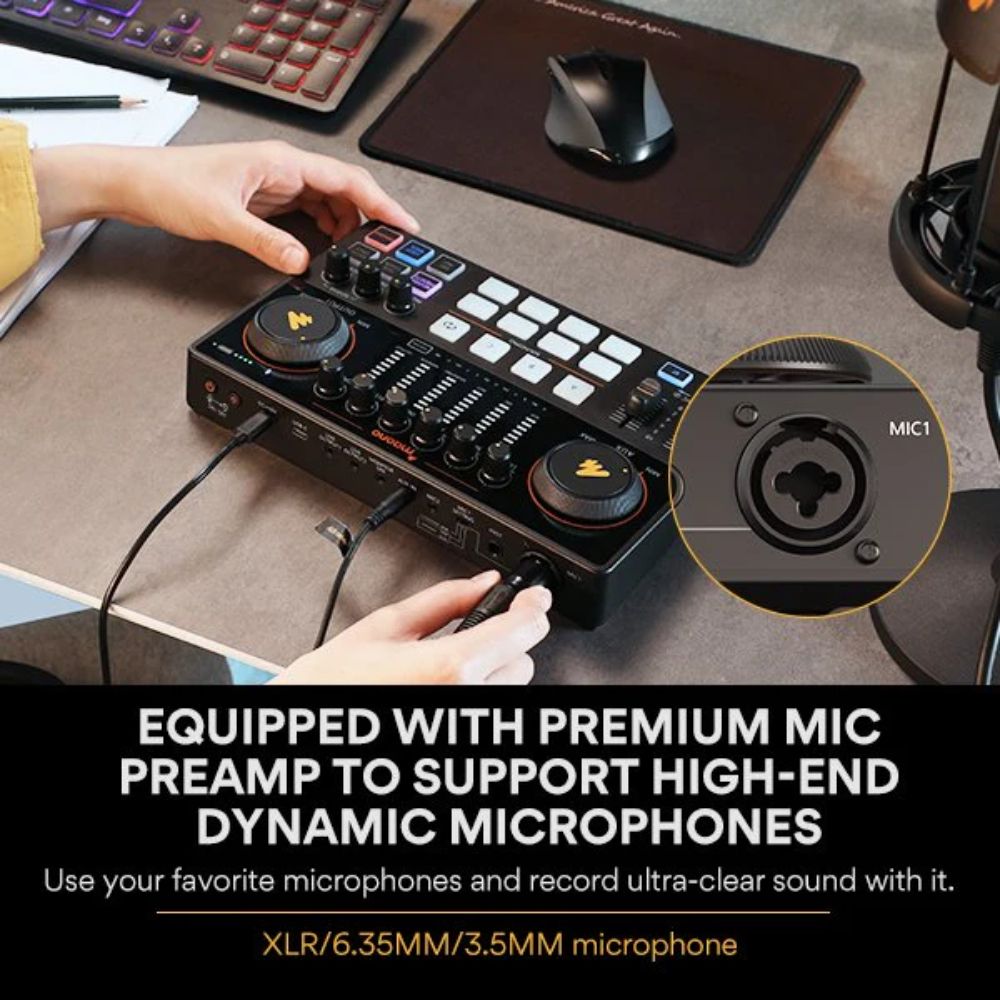

Widely CompatibilityCompatible with most analog microphones in the market, including  XLR condenser/dynamic microphones , 6.35MM dynamic microphones, and 3.5MM microphones.

MAONOCASTER AME2 Audio Interface & Podcast Equipment

Clearer Sound TransmissionSeparate USB C jack to connect your computer, keep away from static noise

MAONOCASTER AME2 Audio Interface & Podcast Equipment

Voice FXSwitch to dry mode to bypass all audio processing and record a pure microphone signal.

MAONOCASTER AME2 Audio Interface & Podcast Equipment

8 Hours Working TimeUp to 8H working time after fully charged can really satisfy your use in more scenrios.

MAONOCASTER AME2 Audio Interface & Podcast Equipment MAONOCASTER AME2 Audio Interface & Podcast Equipment

How to Use the Maonocaster AME2

The Maonocaster AME2 podcast equipment bundle is specially designed with 3-level microphone gain adjustment and  48V  phantom power for the best performance of more microphones. We kindly suggest that you read the following notes before use.

1. Please confirm your microphone type and sensitivity first before buying
If you connect to your own microphone, please refer to the user manual of the microphone to confirm the microphone type and sensitivity.

2. Please confirm if your microphone needs to turn on the 48V phantom power
XLR-connected condenser mics require phantom power, dynamic mics do not.

3. Please adjust the ‘MIC1 SETTING’ on the side of the audio interface to the correct position.
40dB: condenser mic sensitivity higher than -40dB, like MAONO microphone PM320/PM500/AT2020
50dB: dynamic mic sensitivity between -50dB and -55dB, like Samson Q2U/HD300T
60dB: dynamic mic sensitivity between -55dB and -60dB, like Well-known models SM7B/SM58/MV7

Note (Please read carefully before placing the order):

1. Please be well learned that  it is not recommended to directly connect AME2 and other Maono audio mixers to iPhones via OTG adaptor cable, as the sound quality experience may not be as good as when connected to Android.  (Sound will be good if connect with Andriod)   The main reason is that some system restrictions on Apple mobile phones will cause incompatibility.

2. USB microphones are not supported.  You can use the product with MAONO PM320, PM500, and HD300, It also works well with microphones of other brands, including Shure SM7B, Shure SM58, Rode podmic, Samson Q2U, etc.

MAONOCASTER AME2 Audio Interface & Podcast Equipment MAONOCASTER AME2 Audio Interface & Podcast Equipment MAONOCASTER AME2 Audio Interface & Podcast Equipment

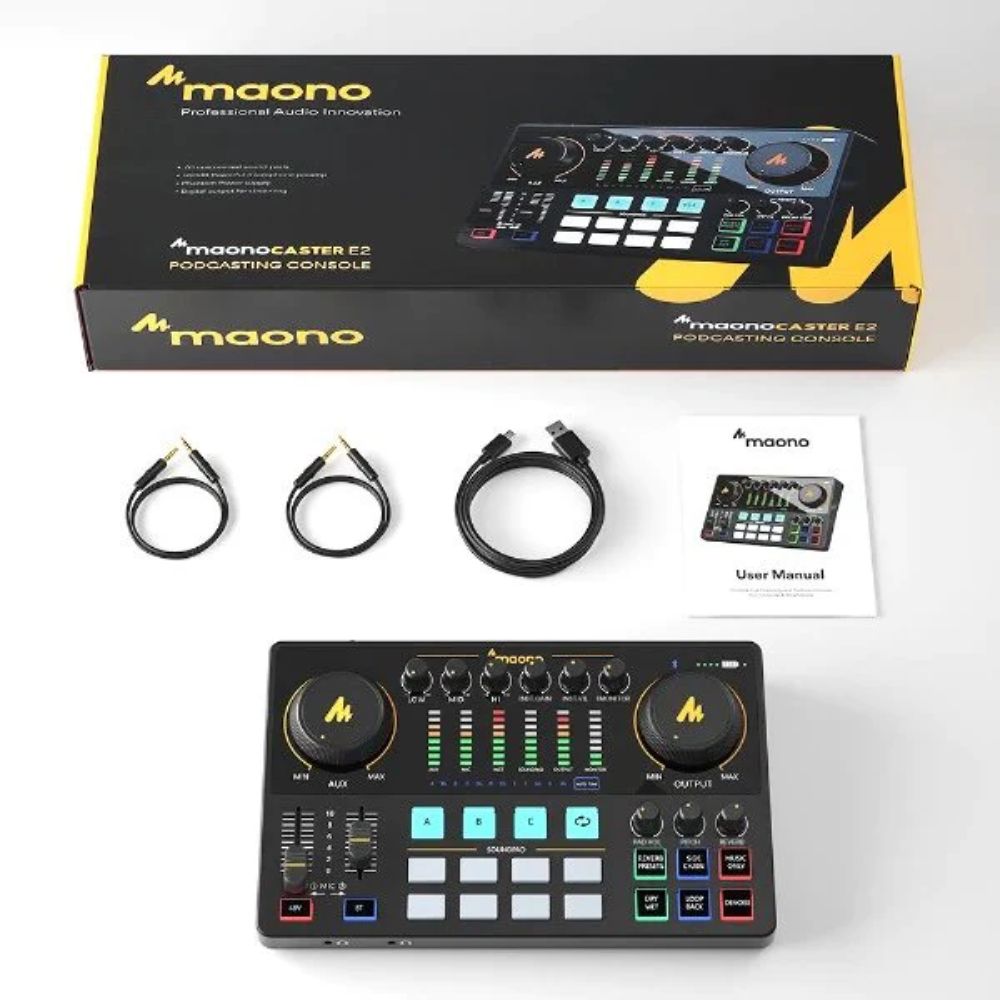

PACKAGE LIST

1* audio interface, 1* metal pop filter, 1* USB A-C charging cable, 2* 3.5mm TRRS audio cable, 1* user manual. We provide a 12-Month warranty. For a better user experience, please download more instructions below and read the user manual before setting up.

SPECIFICATIONS

Data Transmission	USB-C
Frequency Response	20Hz-20kHz
THD	THD<0.05% 1kHz
Headset Output Power	20mW, 32Ω (1kHz, THD+N=1%)
Sample Rate	48kHz /16bit
Wireless Connection	Bluetooth 4.2
Battery Type	Li-Polymer
Battery Capacity	2000mAh
Charge Parameter	5V/1A
Charge Time	Appr. 3h
Battery Life	Appr. 8h (Highest keypads brightness)
Dimension	L24.5*W15.7*H5.5CM(button included)
