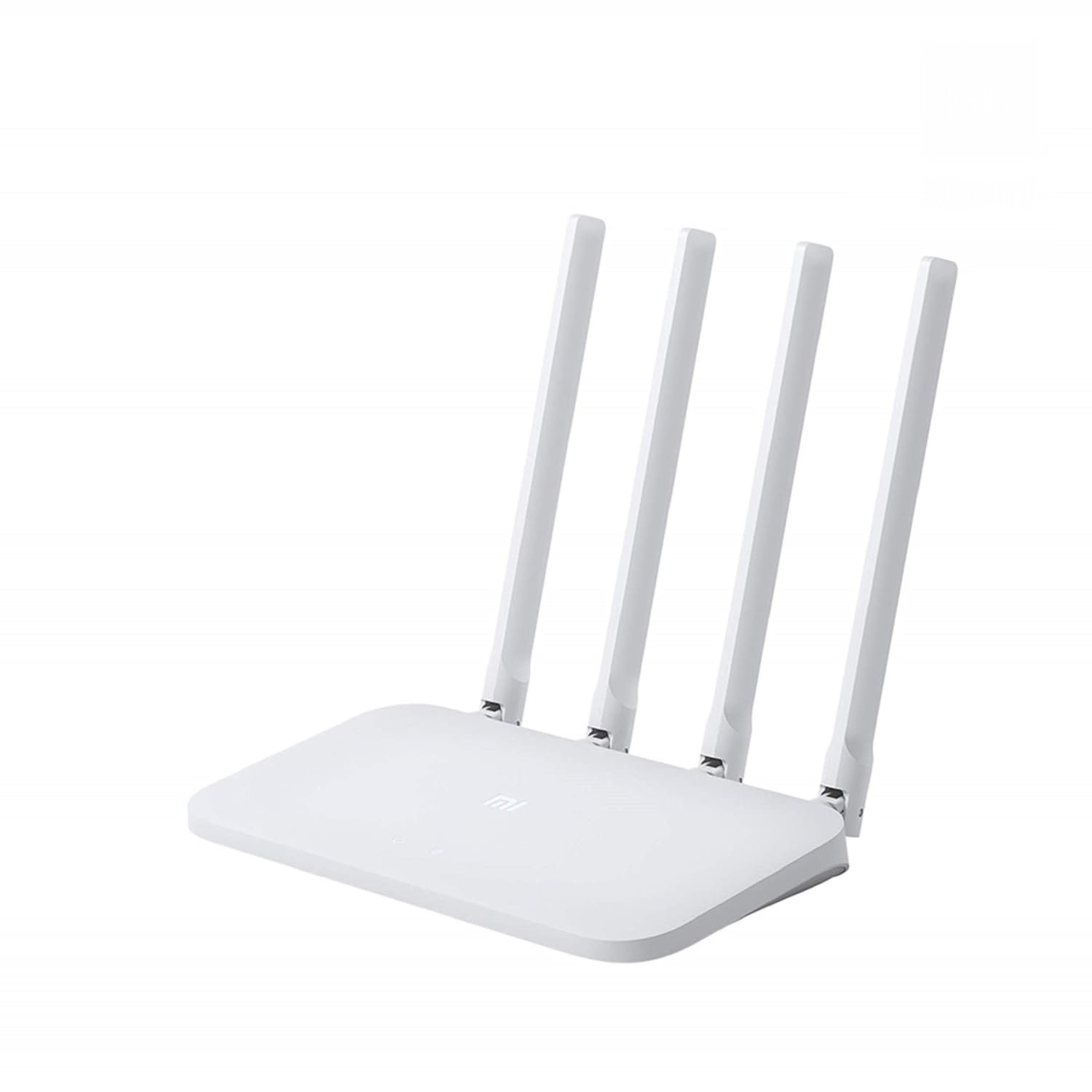

Xiaomi Mi Smart Router 4C

Xiaomi Mi Smart Router 4C

• 2.4 GHz Wi-Fi with up to 300Mbps Speed, Ideal for video streaming and web browsing. ROM : 16MB Nor Flash. Management application : Supports web, iOS, and Android
• 4 High-performance antenna for better speed & coverage. Operating temperature: 0–40°C. Storage temperature:-40–70°C
• Xiaomi Mi Smart Router 4C Control your network from Anywhere, Anytime with help of Mi Wi-Fi app
• QoS (Quality of Service) Manage and allocate bandwidth as per activity requirements
• Parental Control-Control time on internet and content on connected devices
• Improve network speed with Wi-Fi optimization
• Coverage Area: up to 400 Sqft

• Mi Router 4C (White) Hardware configuration Processor MT7628DA Internal memory 64MB DDR2 2.4GHz Integrated LNA and PA 5GHz Not supported Heat dissipation Natural heat dissipation Operating humidity: 10%–90% RH (no condensation) Storage temperature-40–70°C Protocol standards IEEE 802.11b/g/n IEEE 802.3/3u ROM 16MB NorFlash 2.4GHz Wi-Fi 2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps) 5GHz Wi-Fi Not supported Antennas 4x external single band antennas Operating temperature0–40°C Storage humidity 5%–90% RH (no condensation) Warranty information 1 year whole device warranty Certification standards GB9254-2008 YD/T993-1998 GB4943.1-2011 GB9254-2008 YD/T993-1998 GB4943.1-2011″ Hardware interface Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)One system factory settings reset buttonOne orange/blue/purple system status light; one blue external network interface status lightOne 10/100M self-adaptive WAN port (Auto MDI/MDIX)One power input interface Wireless specifications single band2.4GHz

  Modulation

  11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 Reception sensitivity11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm Software specifications Operating systemMi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software Xiaomi Mi Smart Router 4C Wireless securityWPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding Management application Supports web, iOS, and Android Package contents User manualPower adapter Xiaomi Mi Smart Router 4C
