Ubiquiti Pro Max 48-PoE L3 720W 48-Port Switch

Ubiquiti Pro Max 48-PoE L3 720W 48-Port Switch USW-Pro-Max-48-PoE

The Ubiquiti Pro Max 48-PoE L3 720W 48-Port Switch is designed for high-capacity, high-power network environments needing a full suite of Layer-3 routing capabilities, high port counts with mixed speeds, and rich management features. It’s ideal for enterprise, large campus or service provider-grade setups.

Performance / Functionality

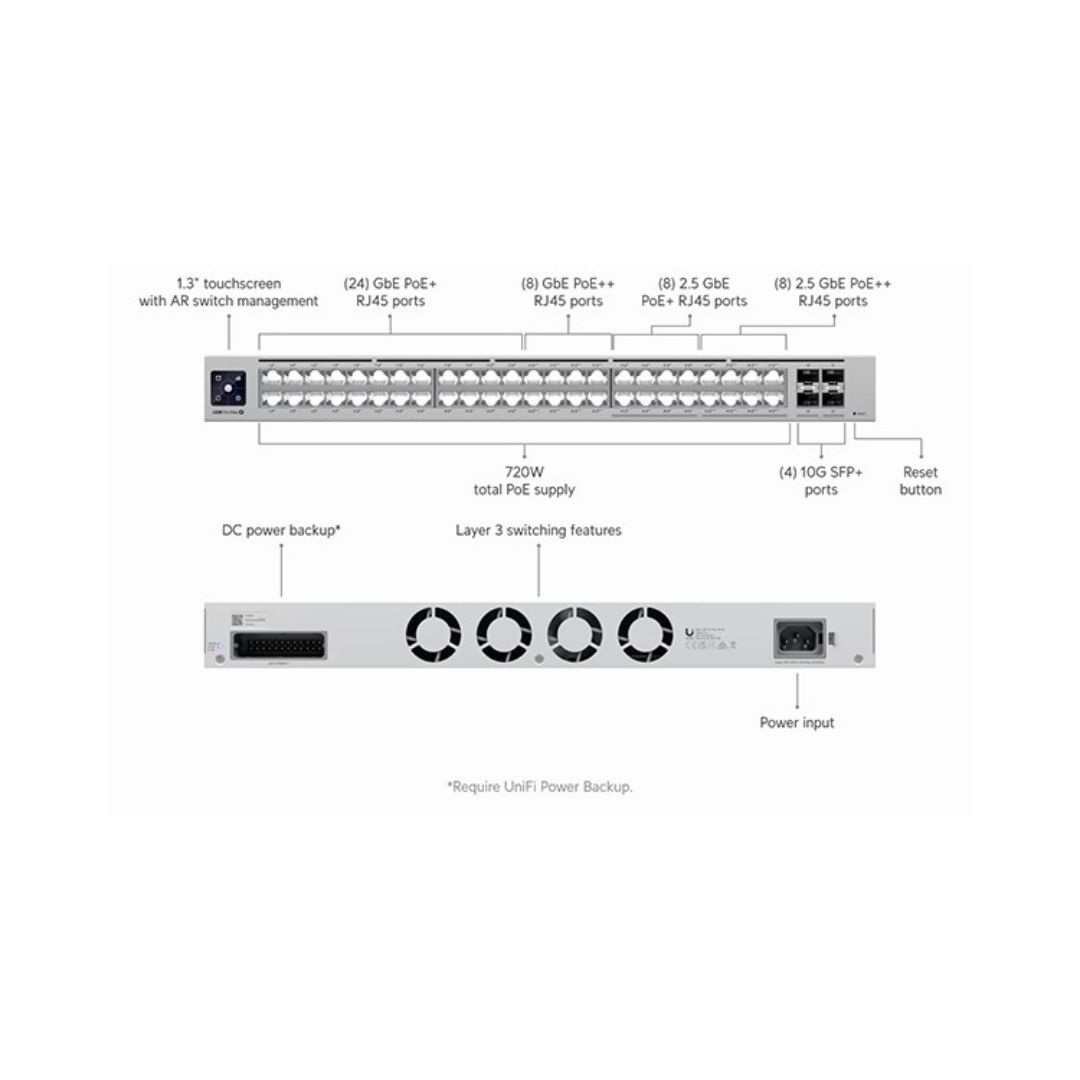

This switch offers 48 RJ-45 ports: 16 ports of 2.5GbE (including 8 with PoE+ and 8 with PoE++), 32 ports of 1GbE (24 PoE+ and 8 PoE++). It also includes 4× 10G SFP+ for uplink or aggregation. Total switching capacity is 224 Gbps , with a non-blocking throughput of 112 Gbps and a forwarding rate around 167 Mpps . Total PoE power output is up to 720W , supporting both PoE+ and PoE++ devices.

Compatibility

Fully compatible with UniFi Network Controller version 8.0.24 or later. Supports advanced Layer-3 features: inter-VLAN routing, static routing, DHCP server & relay, large ARP & route tables. VLAN, QoS, port isolation, ACLs, IGMP, 802.1X supported.

Safety / Convenience Ubiquiti Pro Max

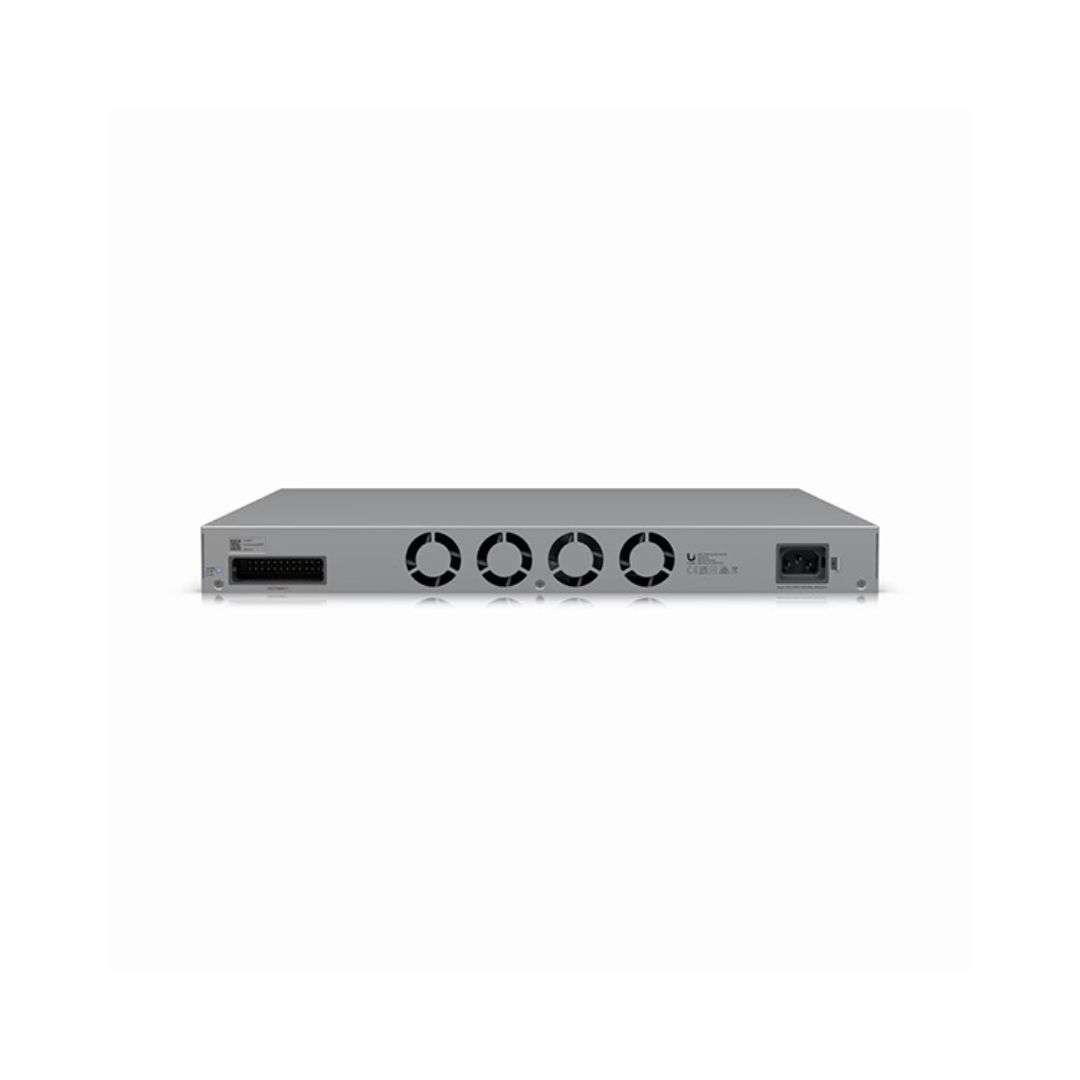

Designed with an internal AC/DC power supply supporting universal voltage (100-240V AC) plus DC power backup options. Rack-mountable 1U enclosure, comes with Etherlighting™ that visually indicates port/link/speed/VLAN status.

Design / Build Ubiquiti Pro Max

Constructed with SGCC steel enclosure, dimensions about 442.4 × 400 × 44 mm , weight ~6.2-6.3 kg with mounting brackets.

Usage Tips

Ensure proper airflow in rack installation to avoid overheating under full PoE load. Use quality cabling for 2.5GbE lines. Keep firmware current via UniFi Network Controller. Use the Etherlighting™ LEDs to quickly troubleshoot port status or VLAN misconfigurations without going into the UI.
