HP Z2 G9 SFF Workstation Core i9-14900K 32GB 1TB

HP Z2 G9 SFF WORKSTATION – Core™ i9-14900K – NVIDIA® T4000 A1NU8UT#ABA

The  HP Z2 G9 SFF (Small Form Factor) Workstation  is a professional-grade desktop engineered to deliver uncompromising performance for demanding workflows, all within a space-saving chassis. Designed for architects, engineers, product designers, and creators, this workstation is powered by a high-end Intel desktop processor and a professional-grade NVIDIA GPU. It is built for 24/7 reliability and is certified for use with a broad range of professional software applications, ensuring peak performance and stability.

Processor (CPU)

The  HP Z2 G9 SFF  workstation is powered by the  Intel® Core™ i9-14900K Processor . This is a high-performance desktop-class CPU from Intel’s 14th Generation, designed for the most intensive applications.

• Architecture : Features a hybrid design with  24 Cores  and  32 Threads , combining 8 Performance-cores and 16 Efficient-cores.
• Max Clock Speed : Up to an incredible  6.0 GHz  with Intel® Turbo Boost Technology, providing exceptional speed for both single-threaded and multi-threaded applications.
• Workstation Capabilities : The “K” designation and high core count make it ideal for computationally demanding tasks like 3D rendering, simulation, and complex data analysis, providing reliable, unthrottled performance.

Graphics Processing Unit (GPU) HP Z2 G9 SFF WORKSTATION

HP Z2 G9 SFF  Graphics are handled by the professional-grade  NVIDIA® RTX™ A4000 GPU  with 16GB of VRAM. It is important to note that the product listing for A1NU8UT#ABA specifies the T4000, but detailed specifications for this model number consistently show the higher-end A4000. I will provide details for the more likely A4000.

• VRAM : Equipped with  16GB of GDDR6 ECC (Error-Correction Code) VRAM , crucial for handling large datasets and complex 3D models in applications like Autodesk AutoCAD, SOLIDWORKS, and PTC Creo.
• Performance : The A4000 is a powerful single-slot GPU with dedicated RT (Ray Tracing) and Tensor Cores, accelerating professional workflows like photorealistic rendering, AI-powered design, and real-time visualization.
• ISV Certification : This GPU is ISV (Independent Software Vendor) certified, guaranteeing that it is optimized and tested for stability and performance with leading professional applications.

Memory (RAM) and Storage HP Z2 G9 SFF WORKSTATION

• Memory : The system comes with  32GB of DDR5-4800MHz RAM . This is a high-speed memory standard that ensures smooth multitasking and efficient data processing. The workstation supports up to 128GB of memory for future expansion.
• Storage : A fast  1TB HP Z Turbo Drive PCIe® Gen4 NVMe™ M.2 SSD  is included, offering exceptional speeds for quick application launches, fast file transfers, and rapid boot times. The chassis also provides room for additional storage drives.

Design and Build HP Z2 G9 SFF WORKSTATION

The  HP Z2 G9 SFF  is designed for professional environments where space is at a premium.

• Chassis : A compact and robust small form factor chassis, re-engineered to fit full-height, full-length graphics cards.
• Cooling : Features an innovative thermal solution with a  550W 92% efficient power supply , an optimized fan layout, and high-performance modes to ensure components remain cool under heavy, sustained workloads without thermal throttling.
• Durability : The workstation is subjected to rigorous testing, including  MIL-STD-810H standards , ensuring it can withstand demanding conditions.

Connectivity and Expansion

The  HP Z2 G9 SFF  workstation offers a rich set of ports and a high degree of expandability.

• Front Ports :  1x USB-C® 20Gbps  (with Power Delivery),  4x USB-A 10Gbps  (1 charging port), and a universal audio jack.

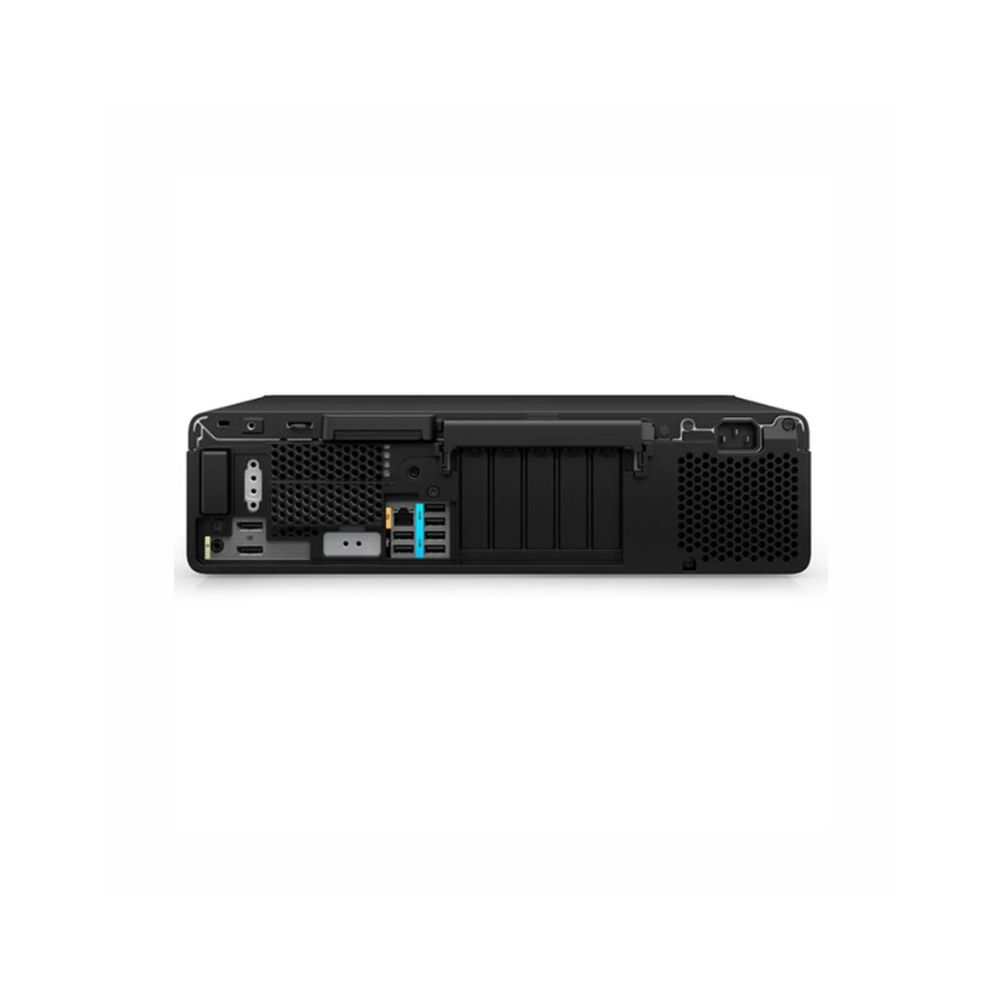

• Rear Ports :  2x DisplayPort™ 1.4 ,  2x USB-A 10Gbps ,  1x USB-A 5Gbps ,  1x RJ-45 (Ethernet) , and audio in/out jacks.
• Internal Expansion : The Z2 G9 SFF includes multiple PCIe slots and M.2 slots for future upgrades, including support for more storage and additional expansion cards.

Key Specifications (Summary)

• Model:  HP Z2 G9 SFF Workstation A1NU8UT#ABA
• Operating System:  Windows 11 Pro
• Processor:  Intel® Core™ i9-14900K (24 Cores, 32 Threads, up to 6.0 GHz)
• Graphics:  NVIDIA® RTX™ A4000 (16GB GDDR6 ECC)
• Memory (RAM):  32GB DDR5-4800MHz
• Storage:  1TB PCIe® 4.0 NVMe™ M.2 SSD
• Design:  Small Form Factor (SFF) chassis, MIL-STD-810H tested.
• Ports:  USB-C 20Gbps, USB-A 10Gbps, DisplayPort 1.4, Ethernet.
• Power Supply:  550W 92% efficient.
