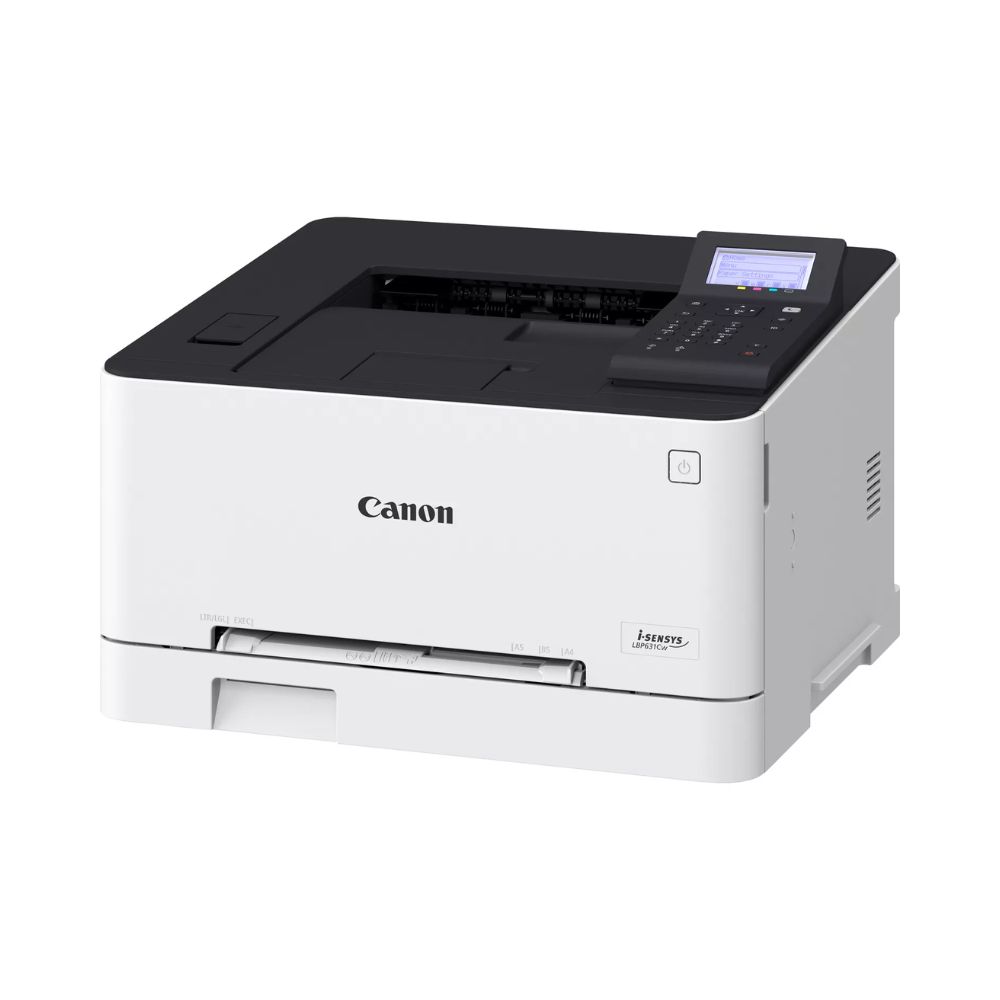

Canon i-SENSYS LBP631Cw Colour Laser Printer

Canon i-SENSYS LBP631Cw Colour Laser Printer

Canon i-SENSYS LBP631Cw

This product contains chemicals

Ink contains a preservative to control microbial deterioration.
Contains 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction.
Contains less than 30% of components with unknown hazards to the aquatic environment.

GPSR

The General Product Safety Regulation (GPSR) promotes consumer safety and confidence by ensuring compliance with product safety standards and improving recall effectiveness. To meet these requirements, we provide the Manufacturer’s information below along with the EU Responsible Person’s details, where applicable.

General Specifications

• Machine Type

  Colour laser single function

• Available Functions

  Print

Canon i-SENSYS LBP631Cw Print Specifications

• Print Speed Single sided: Up to 18 ppm (A4)
  Up to 38 ppm (A5-Landscape)
• Printing Method Colour laser beam printing
• Print Resolution Up to 1200 x 1200 dpi
• Warm-up Time Print ready message shown:
  Approx. 13 seconds or less from power on
• First-Print-Out Time Colour approx.: 10.5 seconds or less
  Mono approx.: 10.4 seconds or less
• Printer Languages UFRII
• Print Margins 5 mm-top, bottom, left and right
• Advanced Printing Features Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app Canon i-SENSYS LBP631Cw

Media Handling

• Paper Input (Standard) 250-sheet cassette
  1-sheet manual feed slot
• Maximum Paper Input Capacity Up to 251 sheets
• Paper Output 100-sheet
• Media Types Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes Cassette:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
• Media Weights Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)

Canon i-SENSYS LBP631Cw Interface & Software

• Interface Type USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T
  Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
  Mac OS X version 10.11 & up
  Linux 4
• Network Protocol Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)Management:
  SNMPv1, SNMPv3 (IPv4, IPv6)Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  Access Point Mode:
  WPA2-PSK (AES)
• Software and Printer Management Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics. Canon i-SENSYS LBP631Cw

General Features

• Recommended Monthly Print Volume 250 – 2,500 pages per month
• Duty Cycle Max. 30,000 pages per month 1
• Processor Speed 800MHz x 2
• Memory 1GB
• Control Panel 5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H) 430 mm x 418 mm x 287 mm
• Weight Approx. 14.9 kg
• Operating Environment Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source 220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption Maximum: Approx. 850W or less
  Active printing: Approx. 390W
  Standby: Approx. 8.5W or less
  Sleep: Approx. 0.8W or less
  Typical Electricity Consumption (TEC): 0.19 kWh/week 6
  For detailed information relating to Lot26 regulation, please go to:  http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels Sound power 2
  Active: 66 dB or less
  Standby: InaudibleSound pressure 2
  Active: 52 dB or less
  Standby: Inaudible

Canon i-SENSYS LBP631Cw Consumables

• Cartridges Cartridge 067 Black (1,350 pages  4 ) 5
  Cartridge 067H Black (3,130 pages  4 ) 5
  Cartridge 067 Cyan (1,250 pages  4 ) 5
  Cartridge 067H Cyan (2,350 pages  4 ) 5
  Cartridge 067 Magenta (1,250 pages  4 ) 5
  Cartridge 067H Magenta (2,350 pages  4 ) 5
  Cartridge 067 Yellow (1,250 pages  4 ) 5
  Cartridge 067H Yellow (2,350 pages  4 ) 5

  EID225
