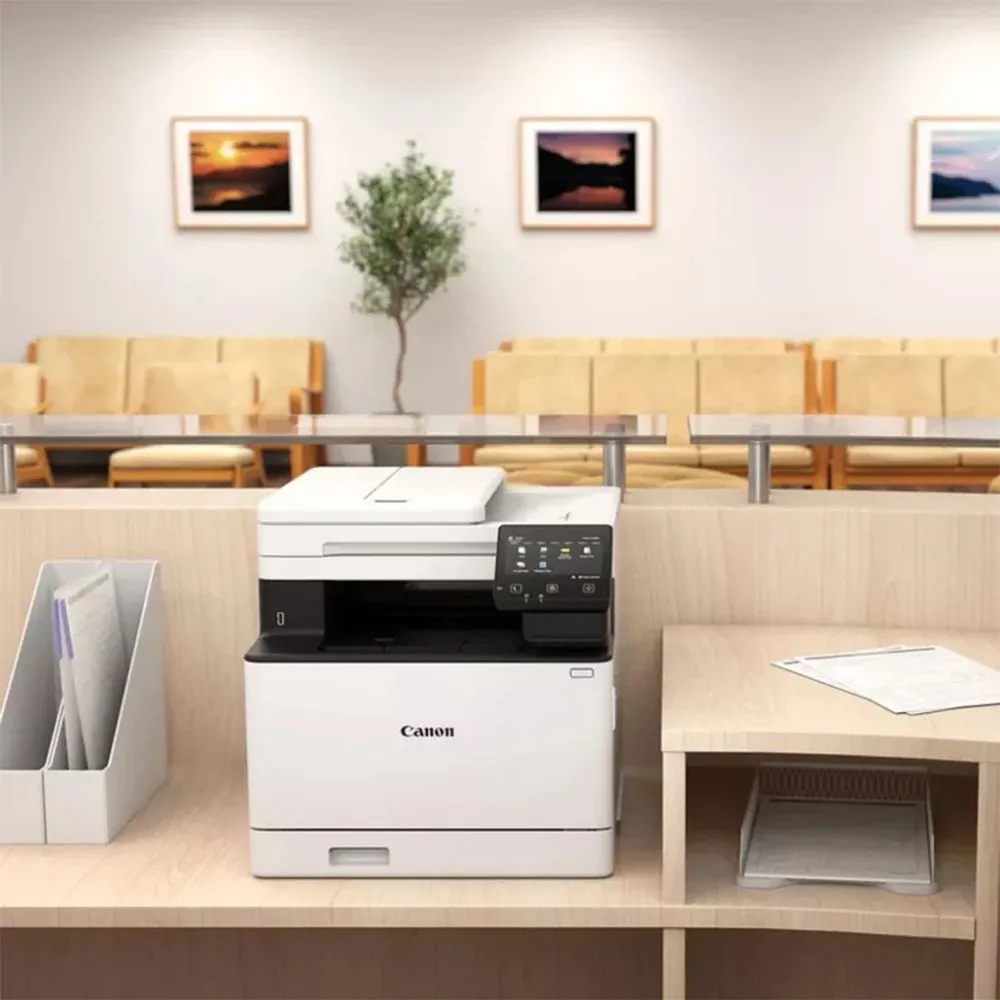

Canon i-SENSYS MF754CDW Multifunction Color Laser Printer – High-Speed Printing, Scanning & Cloud Connectivity.

Canon i-SENSYS MF754CDW Multifunction Color Laser Printer – High-Speed Printing, Scanning & Cloud Connectivity

General Specifications

• Machine Type

  Colour Laser All-In-One

• Available Functions

  Print, copy, Scan, Fax

Print Specifications

• Print Speed

  33ppm

• Printing Method

  Colour laser beam printing

• Print Resolution

  Up to 1200 x 1200 dpi

• Warm-up Time

  Approx. 14 seconds or less from power on

• First-Print-Out Time

  Colour approx.: 7.1 seconds or less
  Mono approx.: 7.1 seconds or less

• Printer Languages

  UFRII, PCL 5c 1 , PCL6, Adobe® PostScript 2

• Fonts

  45 PCL fonts
  136 PostScript fonts

• Print Margins

  5 mm-top, bottom, left and right
  10 mm-top, bottom, left and right (Envelope)

• Toner Saver Mode

  Yes

• Advanced Printing Features

  Encrypted Secure Print
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive) 3  (PDF/JPEG)
  Microsoft Universal Print support
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Copy Specifications

• Copy Speed

  Single sided (A4): Up to 33 ppm
  Double sided (A4): Up to 29 ipm

• First-Copy-Out Time

  ADF (A4):
  Colour Approx. 8.8 seconds or less
  Mono Approx. 7.6 seconds or less
  Platen (A4):
  Colour Approx. 9.4 seconds or less
  Mono Approx. 8.3 seconds or less

• Copy Resolution

  Up to 600 x 600 dpi

• Copy Modes

  Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text

• Double Sided Copying

  2-sided to 2-sided (Automatic)

• Multiple Copies

  Up to 999 copies

• Reduction / Enlargement

  25-400% in 1% increments

• Other Features

  Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy, Reserved copy

Scan Specifications

• Standard Type

  Colour

• Scan Resolution

  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi

• Scan Speed

  Single sided mono: 50ipm (300x300dpi)
  Single sided colour: 40ipm (300x300dpi)
  Double sided mono: 100ipm (300x300dpi)
  Double sided colour: 80ipm (300x300dpi)
  Single sided mono: 40ipm (300x600dpi)
  Single sided colour: 20ipm (300x600dpi)
  Double sided mono: 80ipm (300x600dpi)
  Double sided colour: 40ipm (300x600dpi)

• Colour Scanning Depth

  24 bit/24 bit (input/output)

• Greyscales

  256 levels

• Compatibility

  TWAIN, WIA, ICA

• Maximum Scan Width

  216mm

• Scan to E-mail

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to PC

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to USB Memory Key

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to FTP

  TIFF/JPEG/PDF/Compact PDF/Searchable PDF

• Scan to Cloud

  TIFF/JPEG/PDF/PNG 4

• iFAX

  ITU-T.37

Fax Specifications

• Modem Speed

  33.6 Kbps (Up to 3 seconds/page 5 )

• Receive Mode

  Fax only, Fax/Tel Auto Switch, Answer Mode, Manual

• Fax Resolution

  Standard: 200 x 100 dpi
  Fine: 200 x 200 dpi
  Super fine: 200 x 400 dpi
  Ultra fine: 400 x 400 dpi

• Fax Memory

  Up to 512 pages 6

• Speed Dials

  Up to 281dials

• Group Dials/Destinations

  Max. 299 dials / Max. 299 destinations

• Sequential Broadcast

  Max. 310 destinations

• Memory Backup

  Permanent fax memory backup (Backup with flash memory)

• Double Sided Faxing

  Yes (Transmit and Receive)

• Other Features

  Sender’s Name (TTI), Direct Send, Review, TX Report, Sequential Broadcasting

Media Handling

• Scanner Type

  Platen, 2-sided ADF (single pass)

• Paper Input (Standard)

  250-sheet cassette
  50-sheet multi-purpose tray
  50-sheet ADF

• Paper Input (Option)

  550-sheet cassette

• Maximum Paper Input Capacity

  850-sheet cassette

• Paper Output

  150-sheet

• Media Types

  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope

• Media Sizes

  Cassette (Standard):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.Cassette (Optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.ADF:
  A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216.0 x 355.6 mm

• Media Weights

  Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
  ADF: 50 to 105 g/m²

• Double Sided Printing

  Automatic
  Cassette:
  A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
  Custom size – Min. 148 x 148 mm Max. 216 x 356 mm
  60 to 200 g/m²

Interface & Software

• Interface Type

  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

• Operating System Compatibility

  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.12 & up
  Linux 7

• Network Protocol

  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IPManagement:
  SNMPv1, SNMPv3 (IPv4,IPv6)Security:
  TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES)

• Software and Printer Management

  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Application Library

General Features

• Canon i-SENSYS MF754CDW Recommended Monthly Print Volume

  750 – 4,000 pages per month

• Canon i-SENSYS MF754CDW Duty Cycle

  Max. 50,000 pages per month 8

• Processor Speed

  1200MHz x 2

• Canon i-SENSYS MF754CDW Memory

  1GB

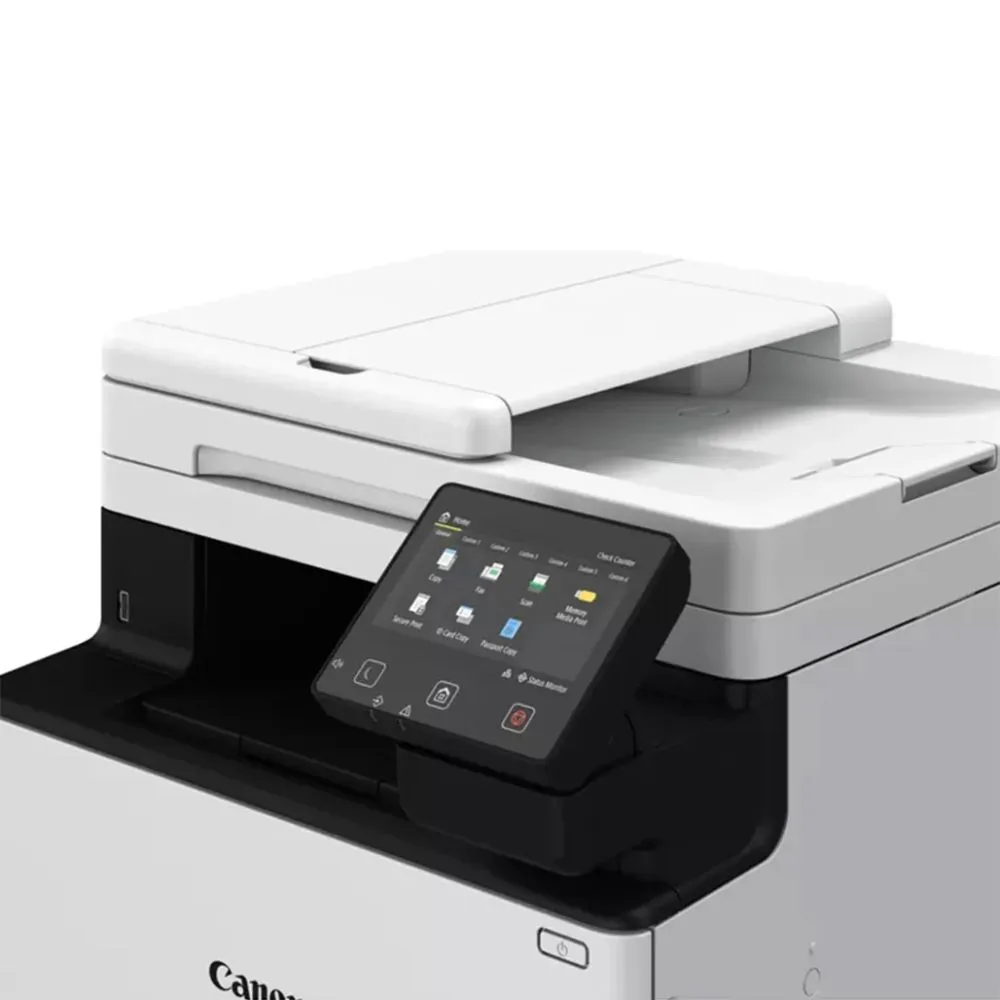

• Canon i-SENSYS MF754CDW Control Panel

  12.7 cm LCD Colour Touch Screen

• Canon i-SENSYS MF754CDW Dimensions with Trays (W x D x H)

  425 mm x 461 mm x 430 mm

• Canon i-SENSYS MF754CDW Installation Space (W x D x H)

  625 mm x 1,117 mm x 991 mm

• Canon i-SENSYS MF754CDW Weight

  Approx. 23.60 Kg

• Canon i-SENSYS MF754CDW Operating Environment

  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)

• Canon i-SENSYS MF754CDW Power Source

  220-240V(±10%) 50/60Hz (±2Hz)

• Canon i-SENSYS MF754CDW Power Consumption

  Maximum: Approx. 1,380 W
  Active printing: Approx. 700W
  Standby: Approx. 24.0 W
  Sleep mode: Approx. 1.0 W
  Typical Electricity Consumption (TEC): 0.30 kWh/week 9  (230V)
  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx

• Noise Levels

  Sound Pressure 10 :
  Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
  Standby: 29 dBSound Power 11 :
  Active: 65dB or less
  Standby: 41dB or less

Canon i-SENSYS MF754CDW Consumables

• Cartridges

  Cartridge 069 Black (2,100 pages*)**
  Cartridge 069H Black (7,600 pages*)**
  Cartridge 069 Cyan (1,900 pages*)**
  Cartridge 069H Cyan (5,500 pages*)**
  Cartridge 069 Magenta (1,900 pages*)**
  Cartridge 069H Magenta (5,500 pages*)**
  Cartridge 069 Yellow (1,900 pages*)**
  Cartridge 069H Yellow (5,500 pages*)**

  *Based on ISO/IEC 19798
  **Printer ships with Black: 2,100 pages, C/M/Y: 1,100 pages starter cartridges
