BOYA BY-WM6R UHF Wireless Microphone Receiver
BOYA BY-WM6R UHF Wireless Microphone Receiver Introduction The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, it work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately). The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video…
Description
BOYA BY-WM6R UHF Wireless Microphone Receiver
Introduction
- The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, it work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately).
- The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video capable camera
- For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder.
- The beltpack can be wirelessly synced with the transmitter for quick setup, and also offers simple menu operation with an illuminated graphic display for more control options.
Features
- 48 channels UHF frequencies for interference-free operation
- User-friendly menu, easy set up Wirelessly syncs with transmitter (transmitter not include)
- Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
- Advanced OLED Display
- Compact and rugged lightweight plastic housing
- Operation range can reach up to 100m
- Powered by one Two AA Batteries (battery not include)
- Includes 3.5mm locked-plug audio cable and a standard 3.5mm headphone jack
- Includes shoe mount
Specifications
- Oscillator type: PLL Synthesized Control Oscillator
- Antenna: Flexible
- Channel group: A or B
- Carrier Frequency Range: 576.4 MHz-599.9 MHz (Channel group: A )
- 568.6 MHz-592.1 MHz (Channel group: B )
- Audio input connector: 3.5mm mini jack
- Signal-to-noise ratio: 80 dB
- Distortion: 0.8% (-60 dBV, 1 KHz input)
- Earphone output level: 60 mW, 32 Ohms/1KHz
- Audio output level: 120 mV
- Power supply: Two AA batteries
- Accessories: 3.5mm audio cable, shoe mount
- Dimensions: (H x W x L) 7.7” x 3.1” x 1.1”(19.6 x 8.0 x 2.9cm)
- Weight: 130g (4.6 oz) without batteries
Compatibility
- Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
Package
- 1 x Receiver

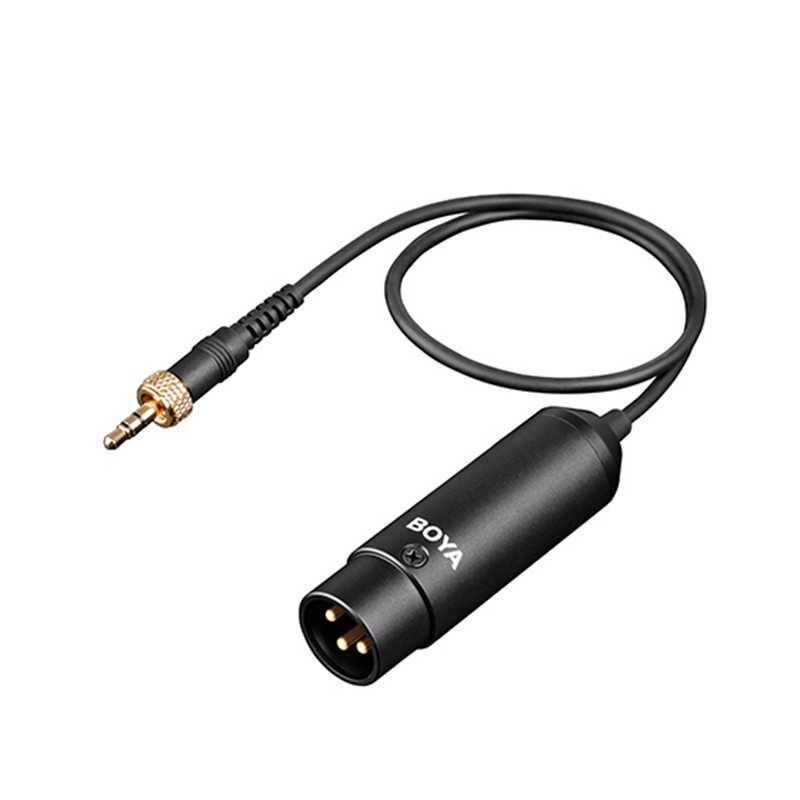

- 1 x XLR output cable

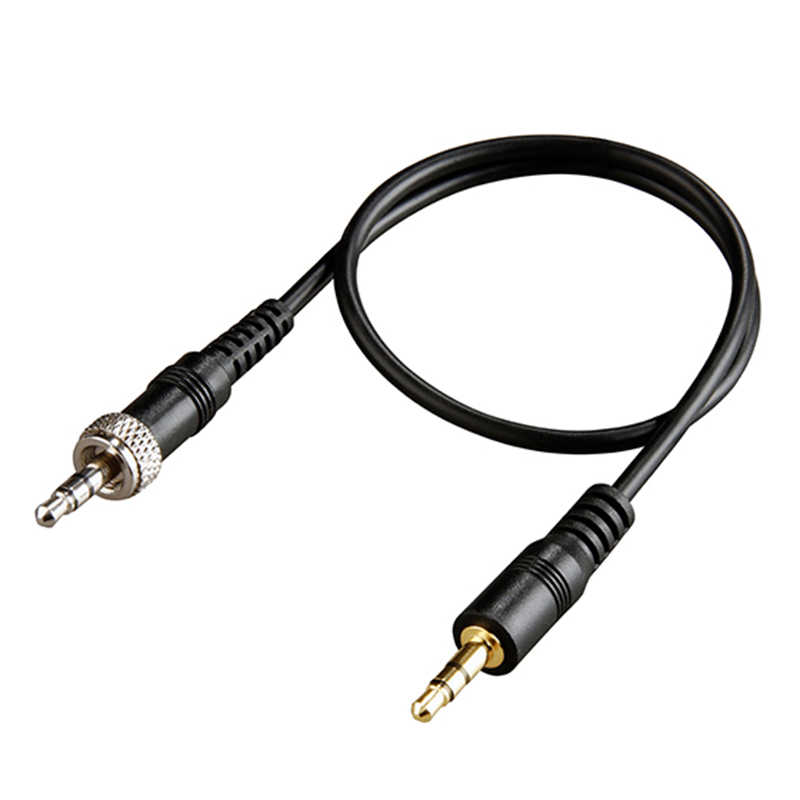

- 1 x 3.5mm mini plug cable
- 1 x Belt clip

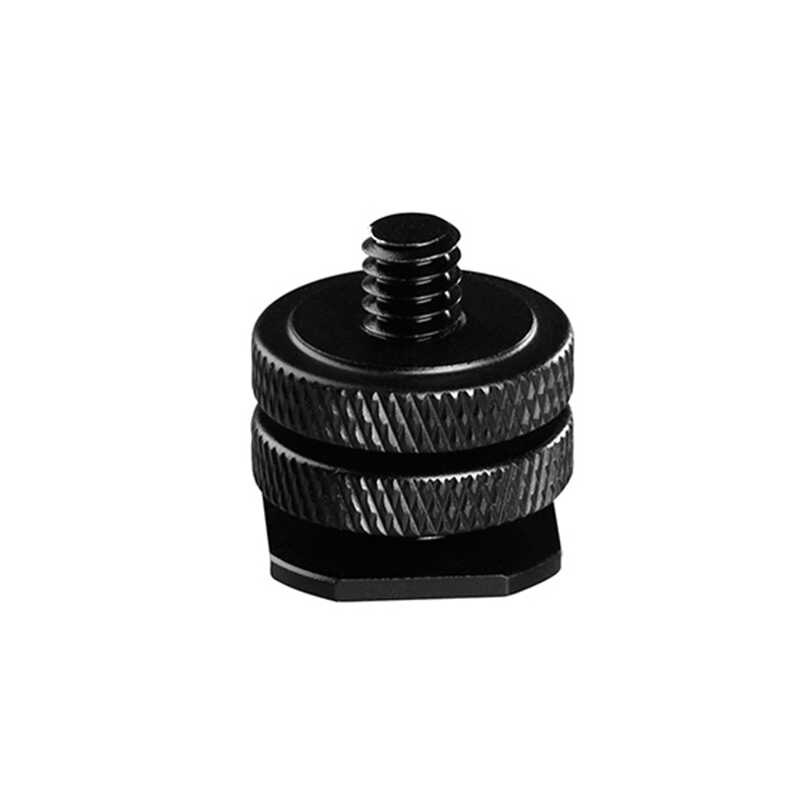

- 1 x Shoe mount adapter
