BOYA by-WM6 UHF Professional Omni-Directional Wireless Lavalier Microphone System

$225.00

Option: Default

SKU: BY-WM6-UHF

Categories: Wireless Microphone Systems

3 in stock

This Bundle Includes the BY-WM6 Wireless Lavalier System & the BY-UM2 Gooseneck Omnidirectional Microphone Easy to set up, perfect for YouTube video, videography, wedding, interview, broadcasting and suits for both professionals and beginners with limited budget, plug and play, the lapel mic work with DSLR, Camcorder, Digital Voice Recorder , DV and more; Ultra High Frequency UHF band at 584 MHz-608 MHz with flexible antenna for strong signal transmitter and reciver offers the low latency and long range transmission, 48 optional channels, easily adjust and avoid signal interference for field recording, ensures the best audio transmission; Long battery life up to 5 to 6 hours working time for your project, powered by 2 AA batery with LCD display showing the battery life remain for your reference and the channel information, extend the working time by battery switch; Lightweight design with waist belt pre-install, comfort to ware, extra back up clip and windscreen for different situation

Description

BOYA by-WM6 UHF Professional Omni-Directional Wireless Lavalier Microphone System

Description

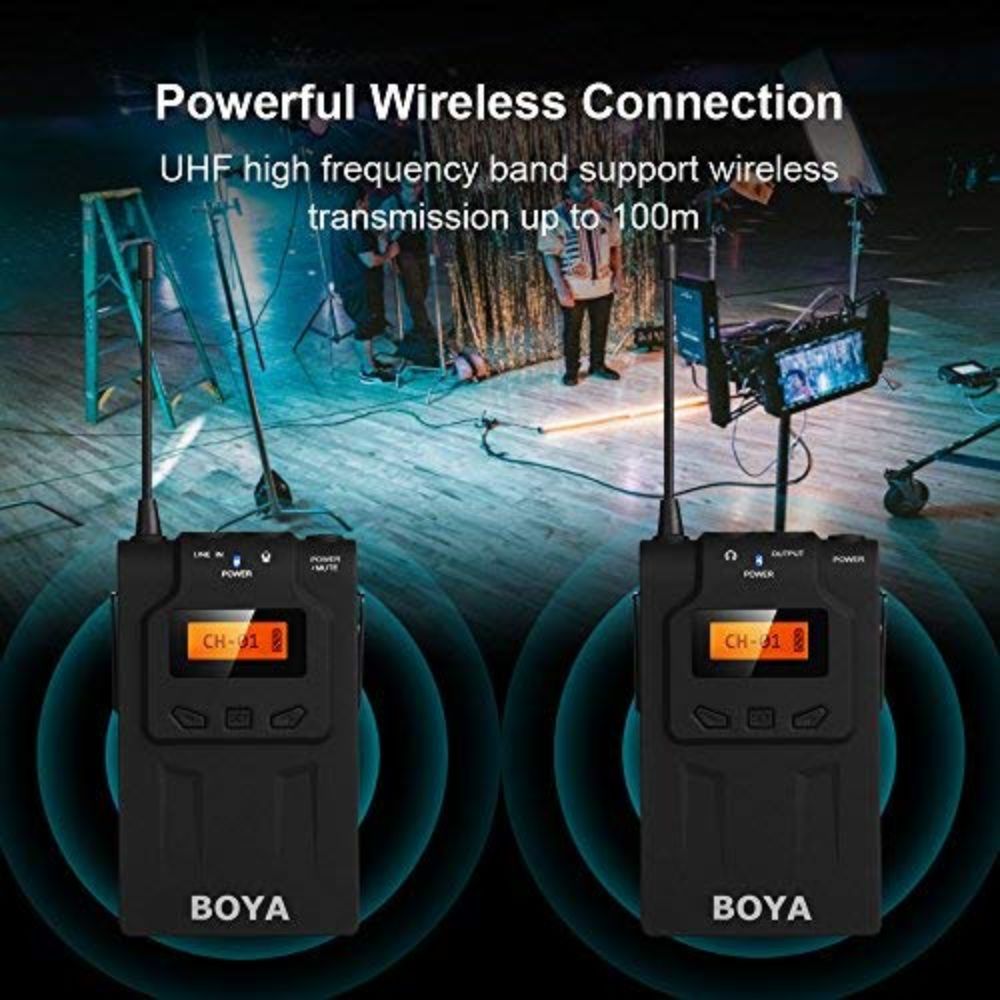

The BOYA BY-WM6 is an UHF wireless microphone system, designed for ENG, EFP, DSLR video, and other professional applications. The receiver and the transmitter are lightweight and simple menu for easy operation. This system operates in the UHF 500 MHz bandwidth.

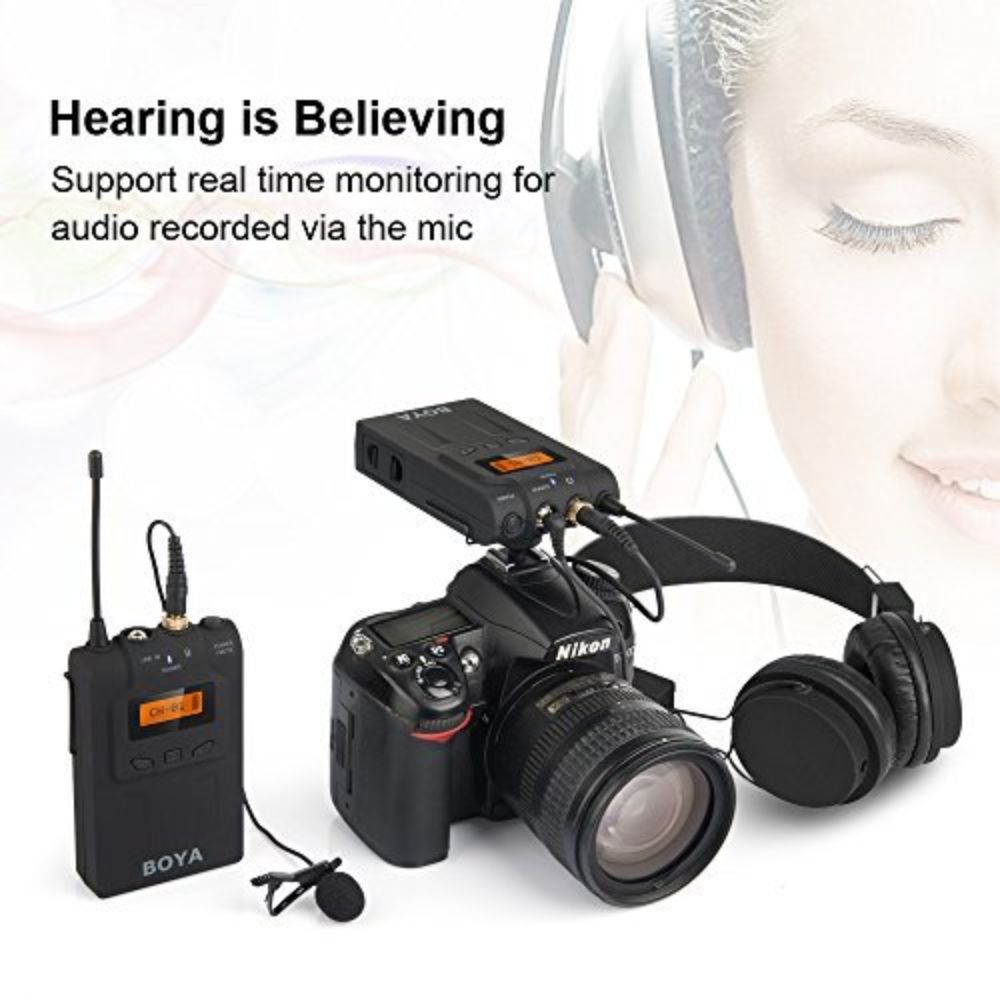

Engineered to be exceptionally reliable, and with professional features such as headphone monitoring, line input, and frequency agility, the BY-WM6 is ideal for EFP (electronic field production), film work, performances and other audio or video applications.

System

Oscillator type: PLL Synthesized Control Oscillator
Carrier Frequency Range: 584 MHz-608 MHz
Channels: 48
Frequency response: 60Hz-15 KHz+/-3 dB
Operation range: 100m (300′)(without obstacle)
Operating temperature: 14° F to 122° F (-10℃ to +50℃)
Storage temperature: 14° F to 131° F (-10℃ to +55℃)

Package Included

1 * Omni-directional lavalier microphone
1 * Stereo 3.5mm mini plug cable
1 * XLR output cable
1 * Microphone Holder clip
1 * Wind screen
1 * Belt clip
1 * Shoe mount adapter
1* COCOMALL Customized Cleaning Cloth
Original Manufactory Package

Item Pictures


Transmitter BOYA by-WM6 UHF Professional Omni-Directional Wireless Lavalier Microphone System RF output power: 20 mW Antenna: Flexible Spurious emission: 250 nW or less Audio input connector: 3.5mm mini jack Audio input level: 600 mV-2000 mV Reference deviation: ±7KHz (-60 dBV, 1 KHz input) Input frequency range: 20 Hz-20 KHz Power supply: Two AA batteries Operation time: 8 hours Dimensions: (H x W x L) 4.2″ x 2.6″ x 1.1″ (10.6 x 6.7 x 2.9 cm)	Receiver Antenna: Flexible Audio input connector: 3.5mm mini jack Signal-to-noise ratio: 80 dB Distortion: 0.8% (-60 dBV, 1 KHz input) BOYA by-WM6 UHF Earphone output level: 60 mW, 32 Ohms/1KHz Audio output level: 120 mV Power supply: Two AA batteries Operation time: 8 hours Dimensions: (H x W x L) 4.2″ x 2.6″ x 1.1″ (10.6 x 6.7 x 2.9 cm) BOYA by-WM6 UHF Weight: 98g (3.5 oz) without batteries	Lavalier Microphone Transducer: Back electret Condenser BOYA by-WM6 UHF Polar pattern: Omni-directional Frequency Range: 35Hz ~ 18 KHz Signal / Noise：74dB SPL Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz BOYA by-WM6 UHF Connector: 3.5mm locking mini plug Length: 1.2m (4′)

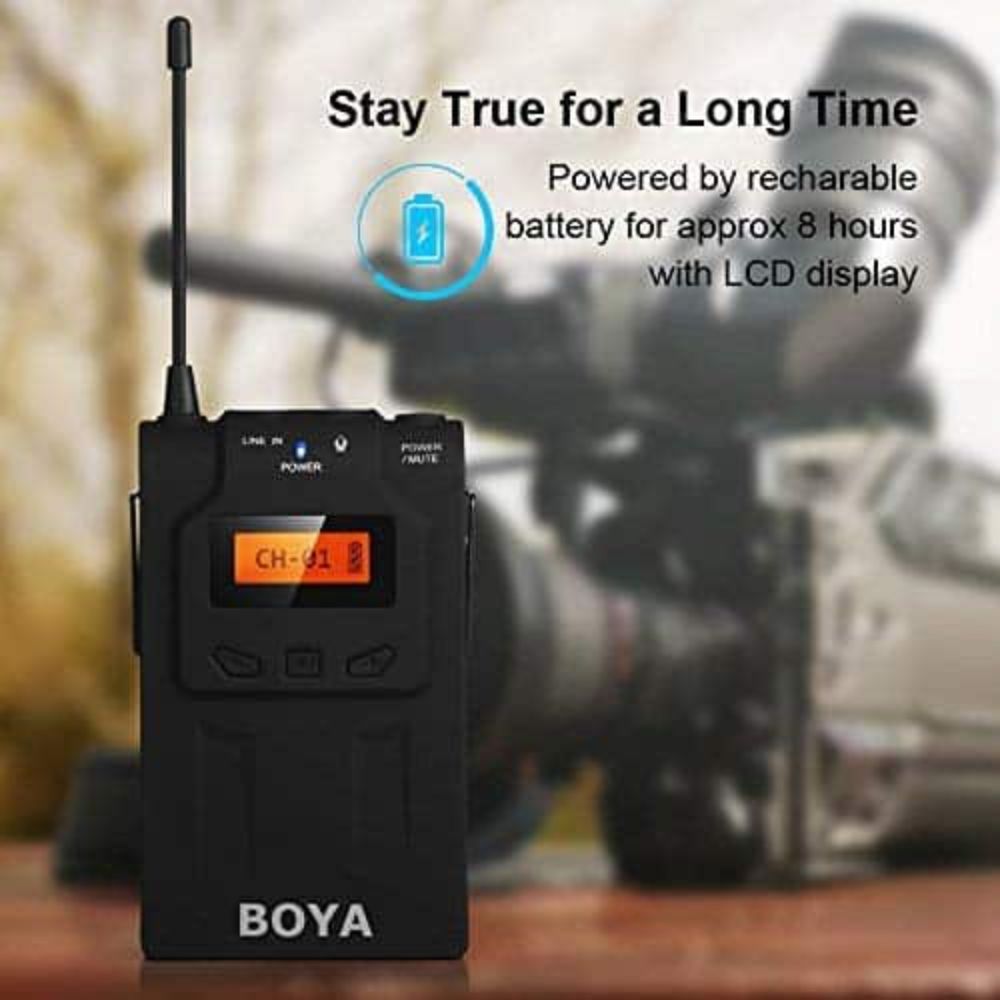

Transmitter

BOYA by-WM6 UHF Professional Omni-Directional Wireless Lavalier Microphone System RF output power: 20 mW
Antenna: Flexible
Spurious emission: 250 nW or less
Audio input connector: 3.5mm mini jack
Audio input level: 600 mV-2000 mV
Reference deviation: ±7KHz (-60 dBV, 1 KHz input)
Input frequency range: 20 Hz-20 KHz
Power supply: Two AA batteries
Operation time: 8 hours
Dimensions: (H x W x L) 4.2″ x 2.6″ x 1.1″ (10.6 x 6.7 x 2.9 cm)
